AX Series Oil Mist Collectors

The unique Filtermist drum and fan combination collects contaminated air and filters it - up to 95%* efficiency at particle sizes of 1μm, with no need for expensive replacement paper filters.

*optional afterfilters available for even cleaner air

Compact | Quiet | Efficient

Tech Data

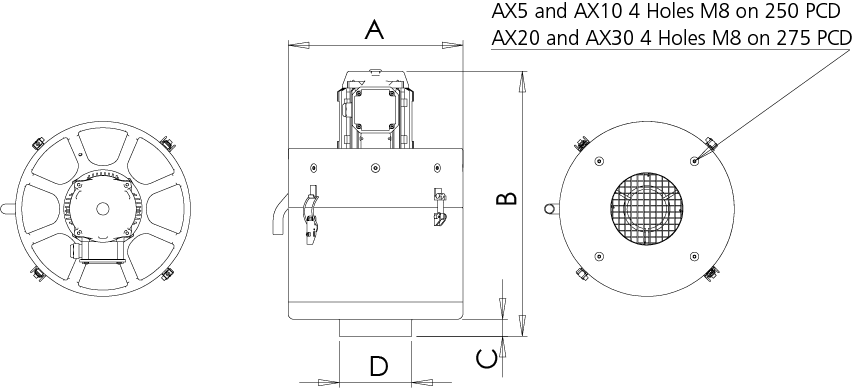

Model	Airflow m³/min	Motor ¹		A mm	B mm	C mm	D mm	Weight kg	Noise ² dBA
AX5	7 @ 50Hz 8 @ 60Hz	0.55kW 50Hz 200v, 220v, 380v, 400v	0.55kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v	325	374	35	148	14	65
AX10	13 @ 50Hz 16 @ 60Hz	0.55kW 50Hz 200v, 220v, 380v, 400v	0.55kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v	325	427	35	148	15	67
AX20	21 @ 50Hz 25 @ 60Hz	1.1kW 50Hz 200v, 220v, 380v, 400v	1.1kW 60Hz 200v, 220v, 230v, 440v, 460v, 480v	357	532	35	148	23	70
AX30	33 @ 50Hz 40 @ 60Hz	2.2kW 50Hz 200v, 220v, 380v, 400v	2.2kW 60Hz 220v, 230v, 440v, 460v, 480v	438	642	35	198	37	73

¹ Motors to be used on specified voltages only.
² Results are in test conditions Â± 3% tolerance. Local variations and in use conditions may affect readings.

Cost effective and simple to maintain
Compact & lightweight
Manufactured in the UK
Technical support in over 60 countries

Engineer Support

If you need help, Filtermist offers expert application knowledge and maintenance services

Servicing & Spares
All industrial oil mist collection equipment performs best with regular preventative maintenance. Benefits include increased efficiency, less production downtime and reduced costs.
