F Monitor monitoring systems use a globally recognised traffic light system of coloured warning lights to alert machine operators when the Filtermist unit needs servicing.

The F Monitor Essential measures velocity pressure to check the airflow through the Filtermist oil mist collector is correct. It uses two standard AA batteries, so no electrical connection is required, and it attaches to the machine using magnets.

The Bluetooth enabled F Monitor 2 measures airflow and time, and the F Monitor 2+ also monitors vibration and motor temperature - making it even easier to identify when your Filtermist unit needs servicing.

All F Monitors can be retro-fitted to the complete Filtermist range and are sold as an optional accessory on all Filtermist units.

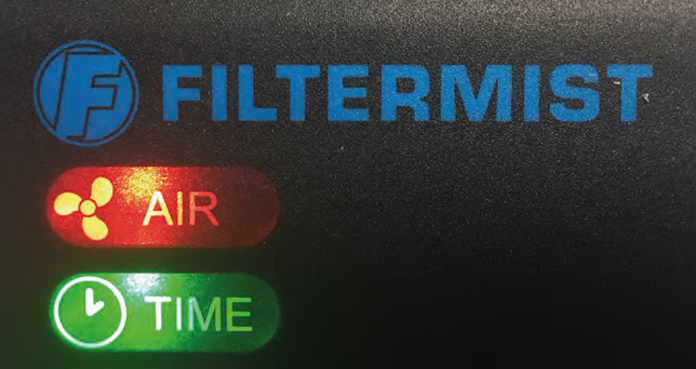

F-Monitor red light

1. When on RED light check for a blockage before calling for a service.

Blow compressed air

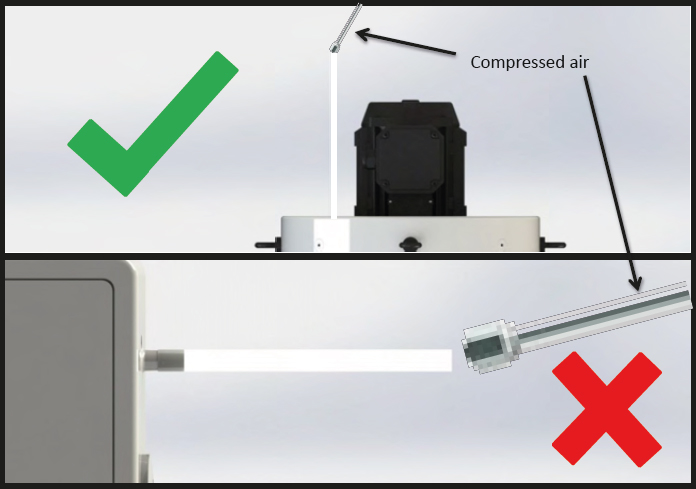

2. Blow compressed air down the tube towards the nozzle, not towards the F Monitor 2.

Blow compressed air

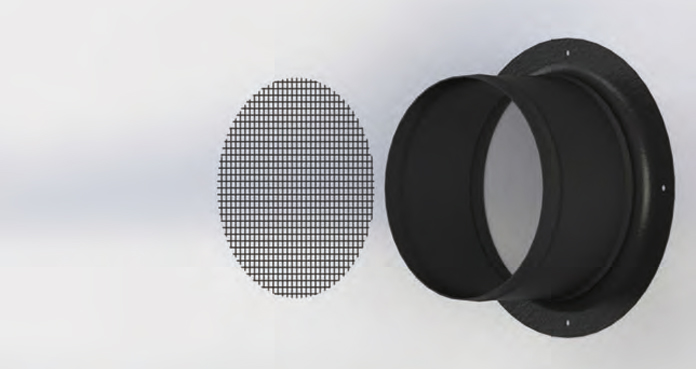

3. Make sure the wire mesh has no blockages.

Blow compressed air

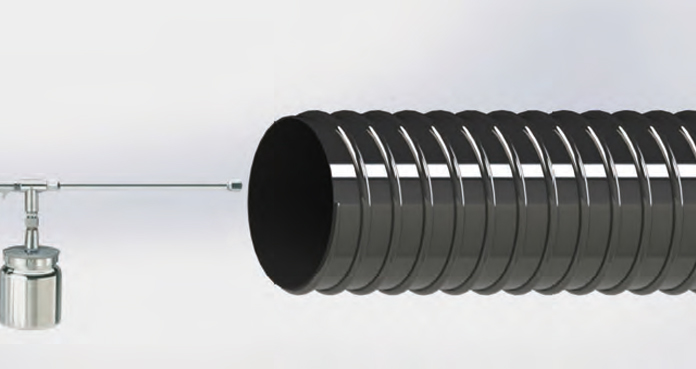

4. Make sure the ducting has no blockages.
